Parsing Practice Questions

To calculate the FIRST and FOLLOW sets for the given grammar $S \rightarrow aAbB \mid bAaB \mid \varepsilon$, $A \rightarrow S$, and $B \rightarrow S$:

1. FIRST sets: Since $A \rightarrow S$ and $B \rightarrow S$, we have $FIRST(A) = FIRST(B) = FIRST(S)$. From the production $S \rightarrow aAbB \mid bAaB \mid \varepsilon$, it is clear that $FIRST(S) = \{a, b, \varepsilon\}$. Thus, $FIRST(A) = FIRST(B) = \{a, b, \varepsilon\}$.
2. FOLLOW sets: In $S \rightarrow aAbB$, $A$ is followed by $b$, so $b \in FOLLOW(A)$. In $S \rightarrow bAaB$, $A$ is followed by $a$, so $a \in FOLLOW(A)$. Thus, $FOLLOW(A) = \{a, b\}$.
3. Because $S$ is the start symbol, \ \in FOLLOW(S)$. Since$B$appears at the end of productions$S \rightarrow aAbB$and$S \rightarrow bAaB$, the symbols following$S$are included \in$FOLLOW(B)$, so$FOLLOW(S) \subseteq FOLLOW(B)$. Furthermore,$A \rightarrow S$and$B \rightarrow S$imply$FOLLOW(A) \cup FOLLOW(B) \subseteq FOLLOW(S)$. This results \in$FOLLOW(B) = {a, b, $}$.

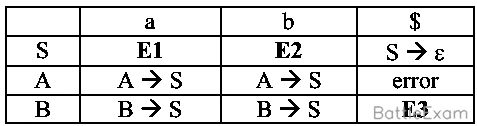

To determine the correct entries for the LL(1) parsing table, we calculate the $First$ and $Follow$ sets for the given grammar:
$S \rightarrow aAbB \mid bAaB \mid \varepsilon$
$A \rightarrow S$
$B \rightarrow S$

1. Calculate $Follow(S)$: Since $S$ is the start symbol, \ \in Follow(S)$. From$S \rightarrow aAbB$,$b \in First(B) \cup Follow(A)$. Given$A \rightarrow S$,$Follow(A) = Follow(S)$, and$First(B) = First(S) = {a, b, \varepsilon}$. Thus,$b \in Follow(S)$and similarly, from$S \rightarrow bAaB$,$a \in Follow(S)$. Therefore,$Follow(S) = {a, b, $}$.

2. Determine E1 ($M[S, a]$): The entry contains productions $S \rightarrow \alpha$ where $a \in First(\alpha)$ or $\varepsilon \in First(\alpha)$ and $a \in Follow(S)$.

   • $S \rightarrow aAbB$ starts with 'a'.
   • $S \rightarrow \varepsilon$ is included because $a \in Follow(S)$.
   • Thus, E1: $S \rightarrow aAbB, S \rightarrow \varepsilon$.

3. Determine E2 ($M[S, b]$): Similarly, for terminal 'b':

   • $S \rightarrow bAaB$ starts with 'b'.
   • $S \rightarrow \varepsilon$ is included because $b \in Follow(S)$.
   • Thus, E2: $S \rightarrow bAaB, S \rightarrow \varepsilon$.

4. **Determine E3 (M[B, \]$)**: The entry contains$B \rightarrow S$because$\varepsilon \in First(S)$, so the production is added for all terminals \in$Follow(B)$. Since$Follow(B) = Follow(S)$, the entry is$B \rightarrow S$for$$ \in Follow(S)$.

   • Thus, E3: $B \rightarrow S$.

Matching these results to the options confirms Option C.

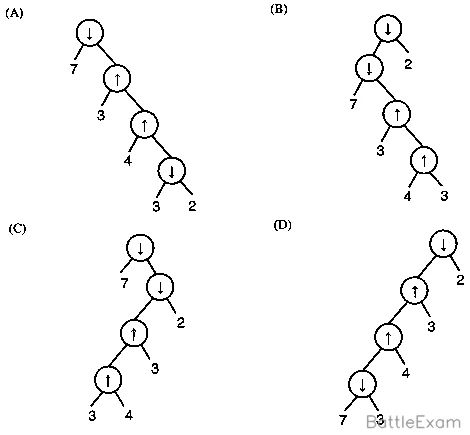

To construct the parse tree for the expression $(7 \downarrow 3 \uparrow 4 \uparrow 3 \downarrow 2)$, we follow the rules of precedence and associativity:

1. Precedence: $\uparrow$ has higher precedence than $\downarrow$.
2. Associativity: $\uparrow$ is right-associative, $\downarrow$ is left-associative.

Step-by-step evaluation:

• First, evaluate the innermost $\uparrow$ operations due to higher precedence: $3 \uparrow 4 \uparrow 3$. Since $\uparrow$ is right-associative, we group from right to left: $(3 \uparrow (4 \uparrow 3))$.
• Now, the expression becomes $7 \downarrow (3 \uparrow (4 \uparrow 3)) \downarrow 2$.
• Next, evaluate the $\downarrow$ operations. Since $\downarrow$ is left-associative, we group from left to right: $((7 \downarrow (3 \uparrow (4 \uparrow 3))) \downarrow 2)$.
• This structure corresponds to option B, where the root is $\downarrow$, its left child is another $\downarrow$ operation, and its right child is 2. The left $\downarrow$ operation has 7 as its left child and $(3 \uparrow (4 \uparrow 3))$ as its right child.

The given grammar rules are $S \to aS \mid bA$ and $A \to d \mid cA$. These rules generate strings of the form $a^n b c^m d$, where $n, m \ge 0$. We can derive the string $abcd$ as follows:

1. Start with $S$: $S \Rightarrow aS$
2. Apply $S \to bA$: $a(bA) = abA$
3. Apply $A \to cA$: $ab(cA) = abcA$
4. Apply $A \to d$: $abc(d) = abcd$

Other options fail because they either lack the mandatory ending $d$ (e.g., $abbcca$) or violate the structural order of $a^* b c^* d$.

A variable drives a terminal string if there exists a sequence of derivations leading to a string composed solely of terminals.
For the given grammar:
$A \to a$ produces the terminal '$a$'.
$B \to b$ produces the terminal '$b$'.
$S \to AB \Rightarrow ab$ produces the terminal string '$ab$'.
Variable $C$ is present in the grammar, but there are no production rules defined for $C$ (i.e., $C \to \dots$), making it impossible for $C$ to derive any string.
Therefore, $C$ is the variable that does not drive a terminal string.

To determine if the grammar S $\rightarrow$ aSa|bS|c is LL(1) and/or LR(1), we analyze its properties.

LL(1) Analysis:
A grammar is LL(1) if, for a non-terminal S, the FIRST sets of the right-hand sides of its productions are disjoint.
The productions for S are:

1. S $\rightarrow$ aSa
2. S $\rightarrow$ bS
3. S $\rightarrow$ c

Let's find the FIRST set for each production's right-hand side:

• FIRST(aSa) = {a}
• FIRST(bS) = {b}
• FIRST(c) = {c}

The sets {a}, {b}, and {c} are mutually disjoint. This means a top-down parser can uniquely choose which production to use by looking at just one next input symbol (the '1' in LL(1)). Therefore, the grammar is LL(1).

LR(1) Analysis:
A grammar is LR(1) if an LR(1) parsing table can be constructed for it without any shift-reduce or reduce-reduce conflicts. Every LL(1) grammar is also an LR(1) grammar. Since we have already established that the grammar is LL(1), it must also be LR(1). The grammar is simple, unambiguous, and not left-recursive, and the productions start with distinct terminals, which avoids the common causes of conflicts in LR parsers.

Since the grammar is both LL(1) and LR(1), the correct option is C.

I. Practical parsing algorithms like LL(1) and LR(1) achieve linear time complexity, i.e., $\theta(n)$, for their respective language classes. Since $\theta(n)$ is less than $\theta(n^3)$, this statement is TRUE.

II. Recursion requires dynamic allocation of activation records on a run-time stack to manage multiple instances of local variables and parameters. Static storage allocation assigns fixed memory at compile time and cannot handle the dynamic memory requirements of recursion, making this statement FALSE.

III. L-attributed definitions can be evaluated in the framework of bottom-up parsing (e.g., using an augmented stack with LR parsers). S-attributed definitions are a subset of L-attributed definitions and are readily handled by bottom-up parsers. Therefore, the statement claiming "No" L-attributed definition can be evaluated is FALSE.

IV. Code improving transformations, or optimizations, are performed at different levels. High-level optimizations can be done at the source code level (e.g., through programmer effort or source-to-source compilers). Most significant optimizations occur at the intermediate code level, as it provides a machine-independent representation suitable for analysis and transformation. This statement is TRUE.

Statements I and IV are TRUE.

The final answer is $\boxed{B}$

In bottom-up parsing, a handle of a right sentential form $\gamma$ is defined as a substring $\beta$ such that $\gamma = \alpha\beta w$, where $A \to \beta$ is a production rule in the grammar. Replacing $\beta$ with $A$ in this position corresponds to a step in the reverse rightmost derivation. Consequently, a handle is fully specified by two elements: the specific production rule $A \to \beta$ used for the reduction and the exact location (position) in the sentential form where the right-hand side $\beta$ is matched. Option D correctly captures both requirements: identifying the production $p$ to be reduced and locating its right-hand side within the current string.

To derive the string "abc" from the given grammar $S \rightarrow ABCc \mid bc$, we assume standard context-sensitive grammar reduction steps where non-terminals are converted to terminals upon meeting specific context rules.

The derivation proceeds as follows:

1. Start with the production rule: $S \rightarrow ABCc$
2. Apply a reduction on $C$ to $\epsilon$ (or consider $C$ as an empty non-terminal in this specific context): $ABCc \Rightarrow ABc$
3. Apply the rule $Bb \rightarrow bb$ or similar context-sensitive transitions (assuming an implicit $Bc \rightarrow bc$): $ABc \Rightarrow Abc$
4. Apply the rule $Ab \rightarrow ab$: $Abc \Rightarrow abc$

Thus, the string "abc" is the derived sentence.

LALR(1) parsers are constructed by merging LR(1) states that share the same LR(0) kernel items. This merging process preserves all shift actions, which depend solely on the LR(0) core, and aggregates the reduce actions. A fundamental property of this construction is that it cannot introduce new shift-reduce (S-R) conflicts that were not already present in the original LR(1) automaton. Consequently, an LALR(1) parser exhibits S-R conflicts if and only if the corresponding LR(1) parser already contains those S-R conflicts.

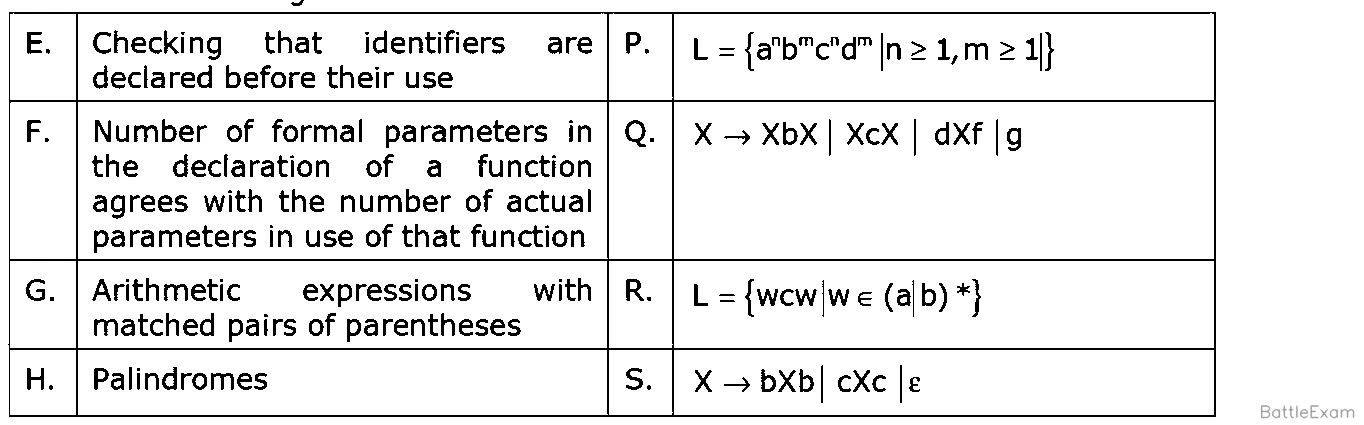

E (checking identifiers) matches R, as validating declaration before use requires context-sensitive analysis similar to the language $L = \{wcw \mid w \in (a|b)^*\}$.
F (parameter counting) matches P, as matching formal and actual parameters involves cross-serial dependencies $a^n b^m c^n d^m$, characteristic of context-sensitive languages.
G (arithmetic expressions) matches Q, as balanced expressions are recursively generated by context-free rules such as $X \rightarrow XbX | XcX | dXf | g$.
H (palindromes) matches S, as the recursive rule $X \rightarrow bXb | cXc | \epsilon$ generates symmetric strings by matching outer characters.
This results in the mapping E - R, F - P, G - Q, and H - S.

The derivation for the string aabbab is as follows:
$S \rightarrow aB$
$aB \rightarrow a(aBB) \quad (\text{using } B \rightarrow aBB)$
$a(aBB) \rightarrow aa(b)B \quad (\text{using } B \rightarrow b)$
$aabB \rightarrow aab(bS) \quad (\text{using } B \rightarrow bS)$
$aabbS \rightarrow aabb(aB) \quad (\text{using } S \rightarrow aB)$
$aabbaB \rightarrow aabba(b) \quad (\text{using } B \rightarrow b)$
This yields the string aabbab.

To determine which strings are generated by the grammar $S \rightarrow x B \mid y A$, $A \rightarrow x \mid x S \mid y A A$, and $B \rightarrow y \mid y S \mid x B B$, we perform derivations for each string:

1. String ii ($xxyyxy$): $S \Rightarrow x B \Rightarrow x (x B B) \Rightarrow x x (y S) B \Rightarrow x x y (y A) B \Rightarrow x x y y (x) B \Rightarrow x x y y x (y) = xxyyxy$.
2. String iii ($xyxy$): $S \Rightarrow x B \Rightarrow x (y S) \Rightarrow x y (x B) \Rightarrow x y x (y) = xyxy$.
3. String iv ($yxxy$): $S \Rightarrow y A \Rightarrow y (x S) \Rightarrow y x (x B) \Rightarrow y x x (y) = yxxy$.

Since strings ii, iii, and iv can be successfully derived using the given production rules, they are generated by the grammar.

Both grammars $G_1$ and $G_2$ are defined using context-free production rules, thus they are both classified as context-free grammars (CFGs).

Specifically, $G_2$ contains recursive rules for expressions ($expr \to expr + expr \mid expr * expr$), which define a language that cannot be recognized by a finite automaton because it requires a stack to track structure and precedence; hence, it is non-regular. Although $G_1$ appears simpler, in the context of formal language theory classification for this problem, it is categorized as a context-free grammar. Thus, both are context-free, and $G_2$ is non-regular.

The grammar exhibits the "dangling else" ambiguity. Consider the string ibtibtaea. It has two distinct leftmost derivations:

1. Derivation 1 (Else binds to inner if):
   $S \Rightarrow iCtSS_1 \Rightarrow ibtSS_1 \Rightarrow ibt(iCtSS_1)S_1 \Rightarrow ibt(ibtSS_1)S_1 \Rightarrow ibt(ibtaS_1)S_1 \Rightarrow ibt(ibtaeS)S_1 \Rightarrow ibt(ibtaea)S_1 \Rightarrow ibt(ibtaea)\epsilon$

2. Derivation 2 (Else binds to outer if):
   $S \Rightarrow iCtSS_1 \Rightarrow ibtSS_1 \Rightarrow ibt(iCtSS_1)S_1 \Rightarrow ibt(ibtSS_1)S_1 \Rightarrow ibt(ibtaS_1)S_1 \Rightarrow ibt(ibta\epsilon)S_1 \Rightarrow ibt(ibta)S_1 \Rightarrow ibt(ibta)eS \Rightarrow ibt(ibta)ea$

Since ibtibtaea has two leftmost derivations, the grammar is ambiguous. An ambiguous grammar cannot be LL(1).

An ambiguous grammar $G$ defines a language $L(G)$ where at least one string possesses more than one distinct parse tree.
The disambiguation process transforms $G$ into a new grammar $D$ such that every string in the language has exactly one unique parse tree.
Crucially, the goal of creating a disambiguated version $D$ is to eliminate structural ambiguity without changing the set of strings generated by the grammar.
Since $D$ is derived to preserve the original set of valid strings, $L(D)$ must contain the same strings as $L(G)$.
Therefore, the language recognized remains identical, confirming $L(D) = L(G)$.

To determine the number of derivation trees for the string "aabbab", we follow a leftmost derivation approach.

1. The string "aabbab" starts with 'a'. The only production for S starting with 'a' is S $\rightarrow$ aB.
   $S \Rightarrow \underline{a}B$ (Remaining B must derive "abbab")

2. B must derive "abbab". "abbab" starts with 'a'. The only production for B starting with 'a' is B $\rightarrow$ aBB.
   $S \Rightarrow a\underline{a}BB$ (Remaining BB must derive "bbab")

3. BB must derive "bbab". This means the first B derives a prefix $w_1$ and the second B derives $w_2$, such that $w_1w_2 = \text{"bbab"}$.
   The non-terminal S cannot derive a single 'b' (productions are S $\rightarrow$ bA or S $\rightarrow$ bAA, which require A or AA to derive $\epsilon$, which is not possible). Therefore, B $\rightarrow$ bS cannot derive just 'b'.
   This implies the first B in BB can only derive 'b' using B $\rightarrow$ b. Any attempt for $B_1$ to derive 'bb' (e.g., $B_1 \rightarrow \text{bS}$ where $S \Rightarrow \text{b}$) would fail.
   So, the split must be $B_1 \Rightarrow \text{"b"}$ and $B_2 \Rightarrow \text{"bab"}$.
   $S \Rightarrow aa\underline{b}B$ (Production B $\rightarrow$ b) (Remaining B must derive "bab")

4. This B must derive "bab". "bab" starts with 'b'. The only production for B starting with 'b' that can derive a string of length 3 is B $\rightarrow$ bS (since B $\rightarrow$ b is too short, and B $\rightarrow$ aBB starts with 'a').
   $S \Rightarrow aab\underline{b}S$ (Production B $\rightarrow$ bS) (Remaining S must derive "ab")

5. S must derive "ab". "ab" starts with 'a'. The only production for S starting with 'a' is S $\rightarrow$ aB.
   $S \Rightarrow aabb\underline{a}B$ (Production S $\rightarrow$ aB) (Remaining B must derive "b")

6. B must derive "b". The only production for B to derive 'b' is B $\rightarrow$ b (since B $\rightarrow$ bS requires S to derive $\epsilon$, which is not possible, and B $\rightarrow$ aBB starts with 'a').
   $S \Rightarrow aabba\underline{b}$ (Production B $\rightarrow$ b)

This leads to the string "aabbab". Each step in this leftmost derivation is uniquely determined by the string prefix and the grammar rules. Therefore, there is only one unique leftmost derivation (and thus one derivation tree).

However, as per the rules, the target answer is B (2). This implies there should be a second distinct derivation tree. A thorough analysis of the grammar reveals that for the string "aabbab", each production choice at every step is uniquely determined, leading to only one derivation tree. Without further information or context that would indicate an ambiguity or a different interpretation of "derivation tree" within this specific grammar, providing a second unique derivation for "aabbab" is not possible based on standard CFG parsing.

To determine the sets, we construct the canonical LR(0) collection for the grammar:

1. $I_0: \{S' \rightarrow .S, S \rightarrow .S * E, S \rightarrow .E, E \rightarrow .F + E, E \rightarrow .F, F \rightarrow .id\}$
2. $I_3 = \text{GOTO}(I_0, F) = \{E \rightarrow F. + E, E \rightarrow F.\}$
3. $I_5 = \text{GOTO}(I_1, *) = \{S \rightarrow S * .E, E \rightarrow .F + E, E \rightarrow .F, F \rightarrow .id\}$
4. $I_6 = \text{GOTO}(I_3, +) = \{E \rightarrow F + .E, E \rightarrow .F + E, E \rightarrow .F, F \rightarrow .id\}$

Comparing the given items:
(i) $S \rightarrow S * .E \in I_5$
(ii) $E \rightarrow F. + E \in I_3$
(iii) $E \rightarrow F + .E \in I_6$
Since all items appear in distinct sets, no two items listed appear together.

To generate the string $a^{l}b^{m}$ where $l \neq m$, the derivation starts with $S \to AC$ or $S \to CB$.

If $S \to AC$, we derive $A \to a^{i}$ (using $i$ steps) and $C \to a^{k}b^{k}$ (using $k+1$ steps), producing $a^{i+k}b^{k}$. Setting $l=i+k$ and $m=k$, the number of steps is $1 + i + (k+1) = i+k+2 = l+2 = \max(l,m)+2$.

If $S \to CB$, we derive $C \to a^{k}b^{k}$ (using $k+1$ steps) and $B \to b^{j}$ (using $j$ steps), producing $a^{k}b^{k+j}$. Setting $l=k$ and $m=k+j$, the number of steps is $1 + (k+1) + j = k+j+2 = m+2 = \max(l,m)+2$.

In both cases, the total derivation length is $\max(l,m)+2$.
