Shear Force And Bending Moment Practice Questions

Generate GATE-level questions on Shear Force And Bending Moment in Solid Mechanics. Focus on core concepts, previous year patterns, and numerical problem-solving techniques.

24 questions · 4 PYQs · 0 AI practice · GATE CE 2027

Q21GATE 2003MCQ

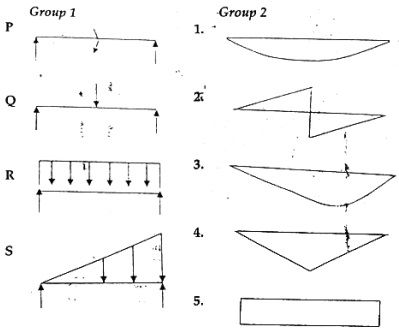

Group-I shows different loads acting on a beam and Group-II shows different bending moment distributions. Match the load with the corresponding bending moment diagram.

🚀 Solve in Practice Mode

📖 Explanation

Currently no explanation available

Q22GATE 2003MCQ

A curved member with a straight vertical leg is carrying a vertical load at Z , as shown in the figure. The stress resultants in the XY segment are

🚀 Solve in Practice Mode

📖 Explanation

There is no eccentricity between the XY segment and the load. So, it is subjected to axial force only. But the curved YZ segment is subjected to axial force, shear force and bending moment.

Q23GATE 2002MCQ

← Page 1Page 2 of 2

Want unlimited AI-generated Shear Force And Bending Moment questions?

Start practising for free →

For the loading given in the figure below, two statements (I and II) are made. I. Member AB Carries shear force and bending moment. II. Member BC carries axial load and shear force. Which of the following is true?

🚀 Solve in Practice Mode

📖 Explanation

Member AB carries shear force and bending moment both. Hence statement-I is true Member BC carries axial load and bending moment only. Hence statement-II is false.

Q24GATE 2001MCQ

The bending moment (in kNm units) at the mid span location X in the beam with overhangs shown below is equal to

🚀 Solve in Practice Mode

📖 Explanation

\begin{aligned} \mathrm{R}+\mathrm{V}&=30 &\ldots(i)\\ \text { Now, } \mathrm{V} &\times 2-20 \times 3+10 \times 1=0 \\ \mathrm{V}&=\frac{60-10}{2}=25 \mathrm{kN}\\ \therefore \quad \mathrm{R}&=5 \mathrm{kN}\\ \mathrm{BM} \text { at }\quad X&=25 \times 1-20 \times 2=-15 \mathrm{kNm} \end{aligned}
